Model Whirlpool D7507^0 ELECTRIC RANGE – Common Parts & Diagrams

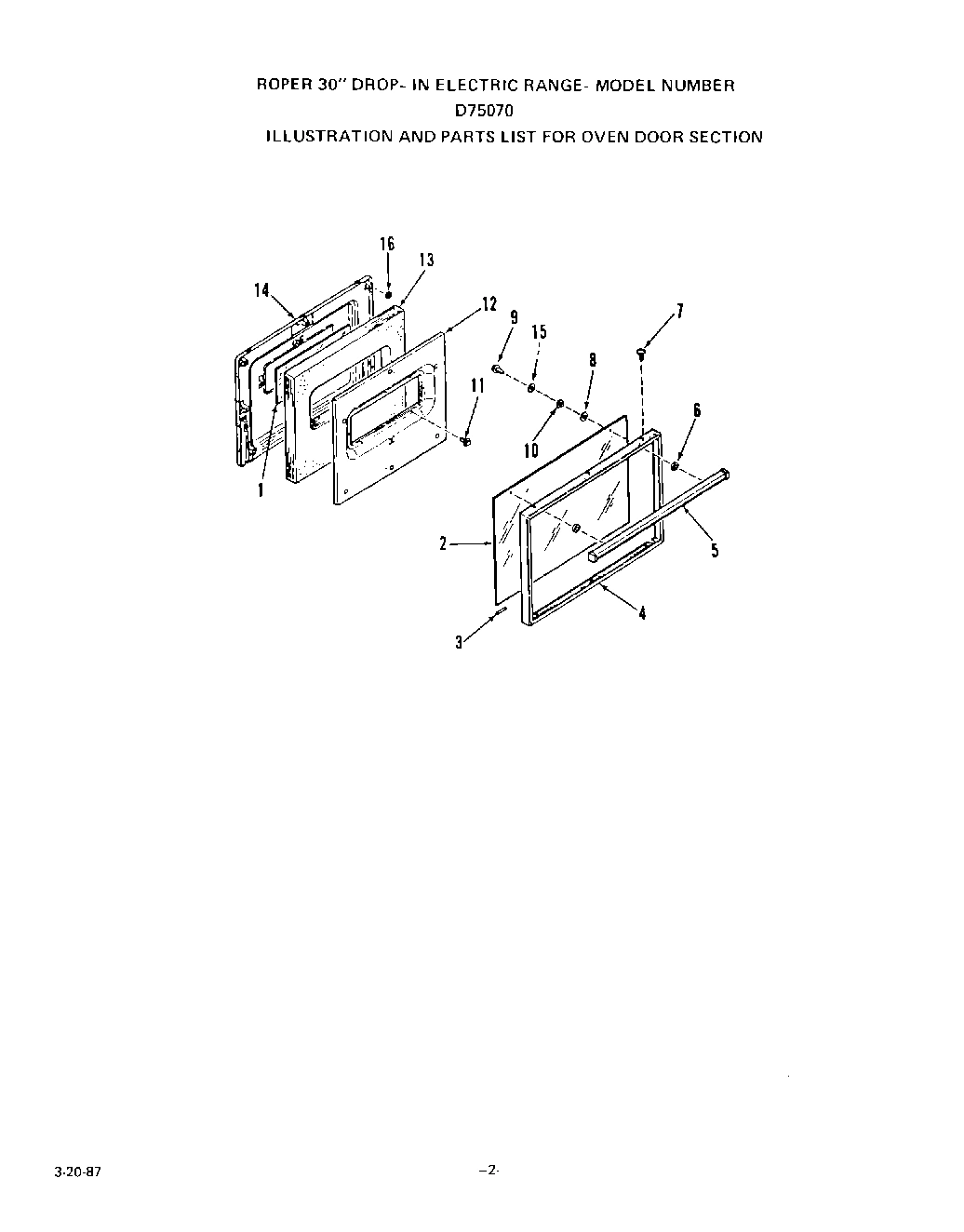

03 - OVEN DOOR

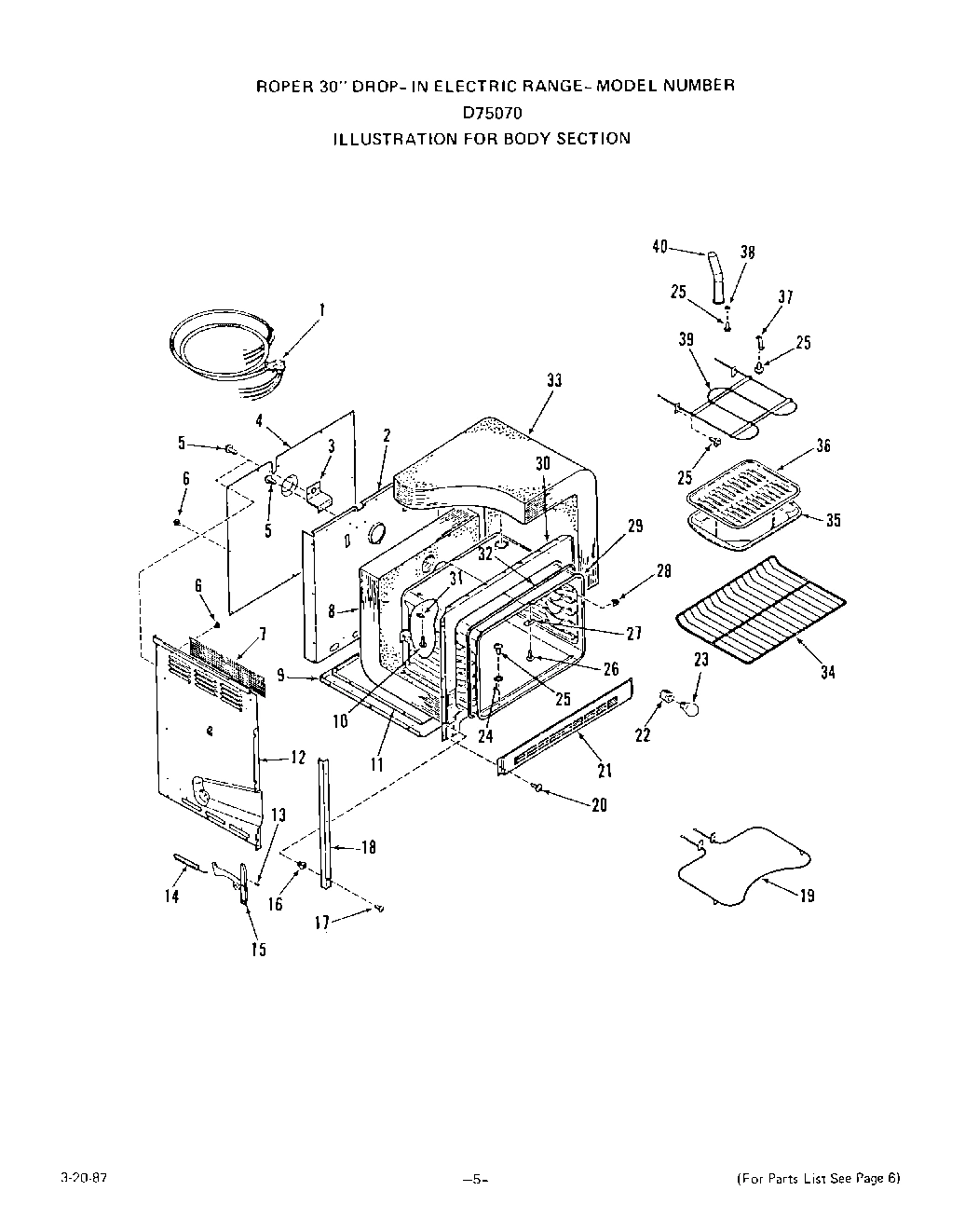

05 - BODY

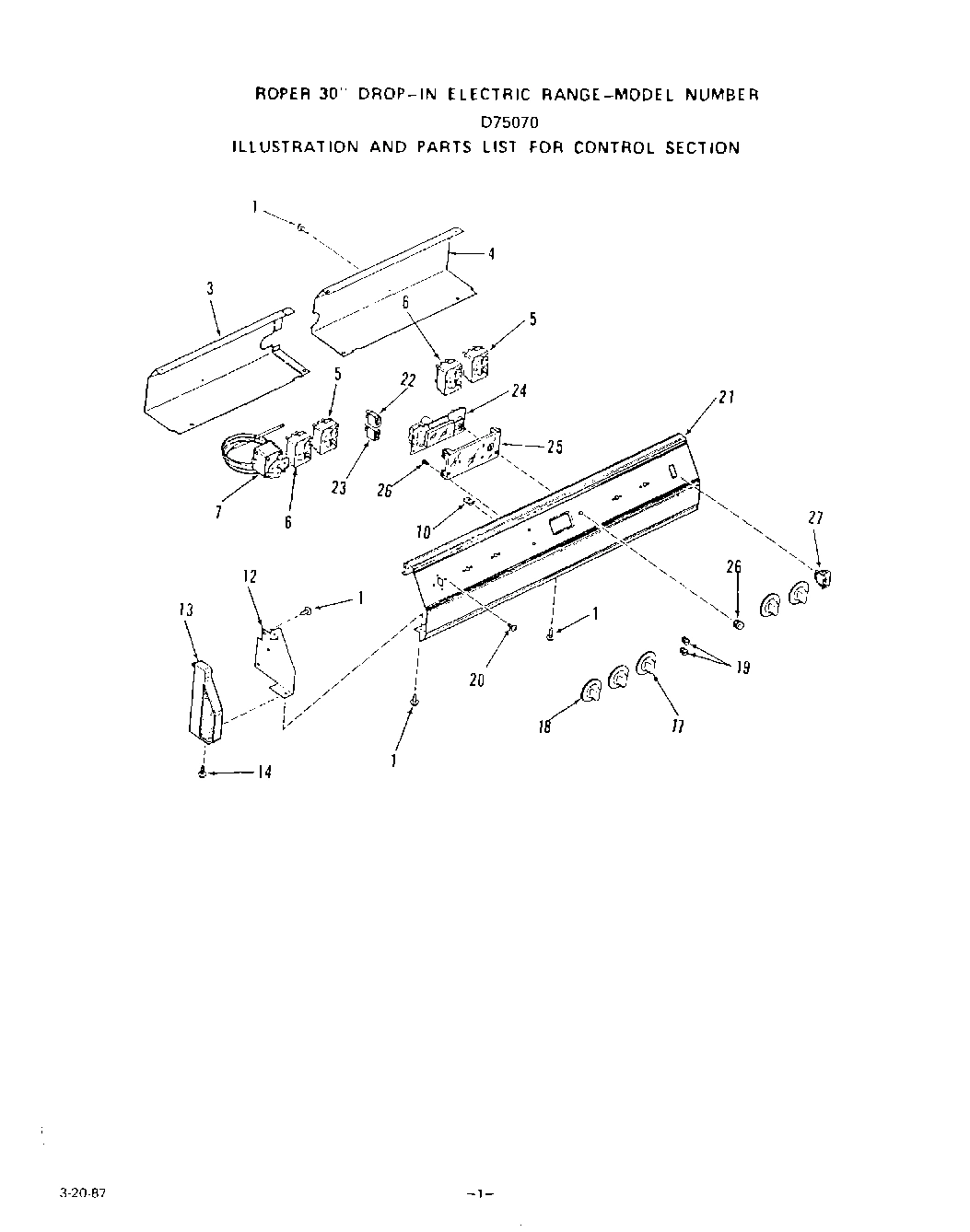

02 - CONTROL

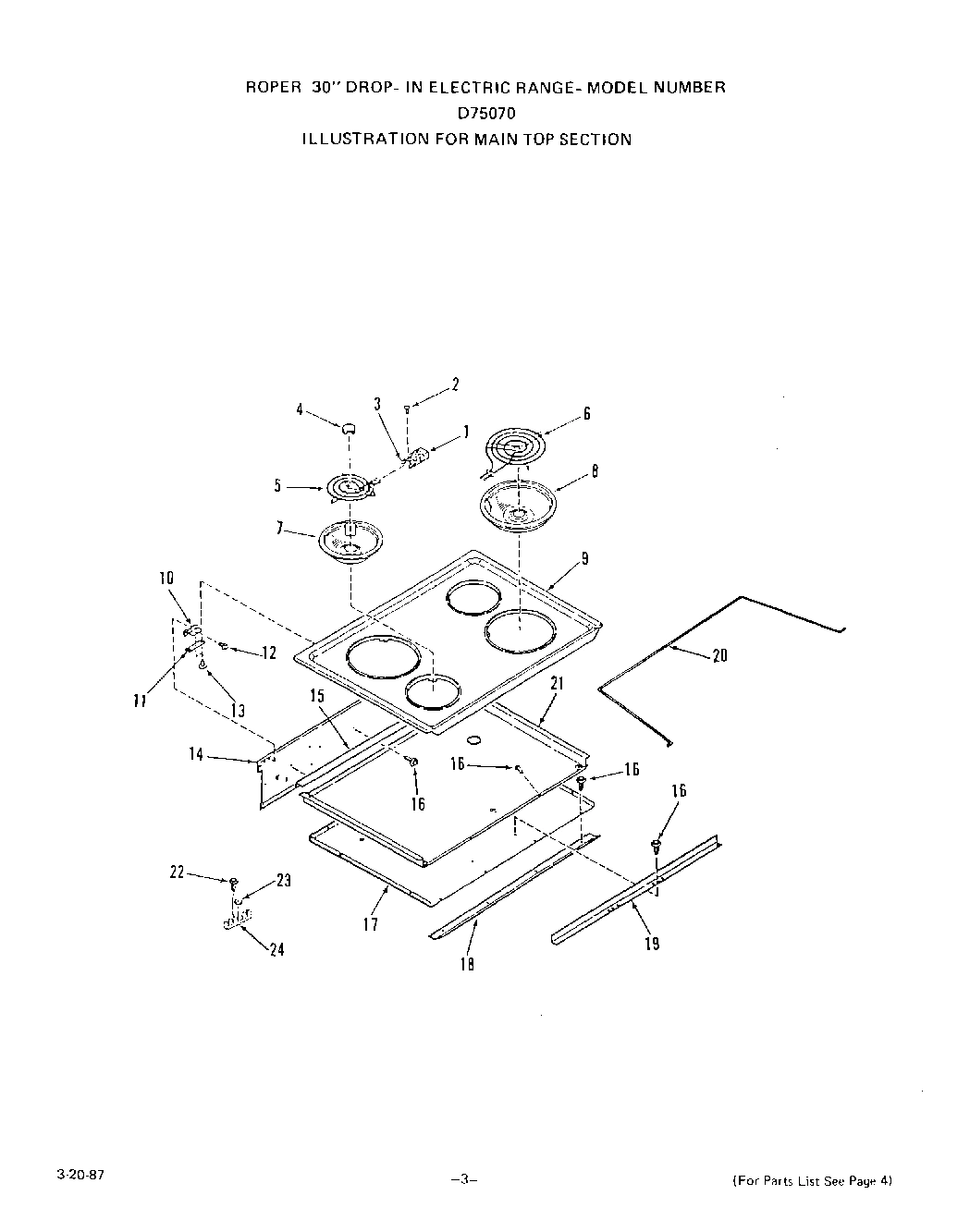

04 - MAIN TOP

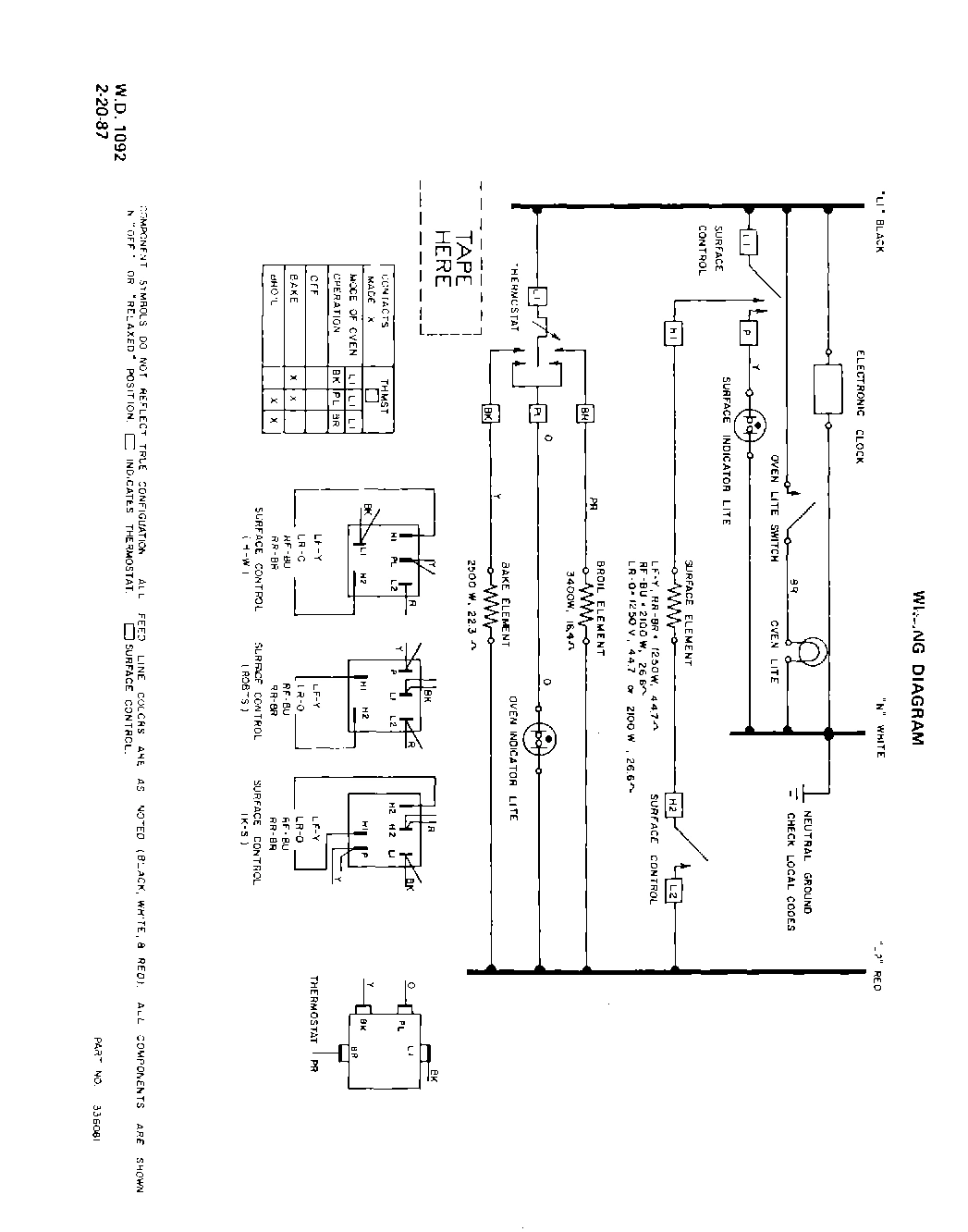

06 - WIRING DIAGRAM
Common parts from model Whirlpool D7507^0 ELECTRIC RANGE
1
Inner Glass WPL 326010 Contact Us For Availability
1
Harness-Conduit Wire WPL 337220 Contact Us For Availability
1
Block-Terminal w/Wires WPL 318960 Contact Us For Availability
2
Outer Glass WPL 332067 Contact Us For Availability
2
Back-Main WPL 336077 Contact Us For Availability
2
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
3
Bracket-Conduit Mounting WPL 317218 Contact Us For Availability
3
Cover-Wire Control (Left) WPL 336088 Contact Us For Availability
3
Clip-Terminal Block WPL 318872 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
4
Cover-Wire WPL 330920 Contact Us For Availability
4
Cover-Wire Control (Right) WPL 336086 Contact Us For Availability
4
Medallion WPL 319704 Contact Us For Availability
5
Handle WPL 332452 Contact Us For Availability
5
Control Infinite WPL 320946 Contact Us For Availability
5
Element-Surface 6`` WPL 325507 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Clip WPL 70588 Contact Us For Availability
6
Control Infinite WPL 320945 Contact Us For Availability
6
Element-Surface 8`` WPL 325503 Contact Us For Availability
7
Screen-Burner Box WPL 333224 Contact Us For Availability
7
Thermostat-Oven WPL 326322 Contact Us For Availability
7
Bowl-Burner 6`` WPL 296481 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
8
Insulation-Oven Back & Bottom WPL 326049 Contact Us For Availability
8
Bowl-Burner 8`` WPL 304969 Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
9
Bottom-Main WPL 330898 Contact Us For Availability
9
White WPL 307202 Contact Us For Availability
9
Almond WPL 313028 Contact Us For Availability
9
Chrome WPL 324399 Contact Us For Availability
9
Top-Main WPL ARI22718A6 Contact Us For Availability
10
Spacer-Glass WPL 333015 Contact Us For Availability
10
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
10
Hinge-Main Top WPL 315568 Contact Us For Availability
11
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
11
Retainer-Insulation (Bottom) WPL 330872 Contact Us For Availability
11
Bracket-Hinge Mounting WPL 315782 Contact Us For Availability
12
Retainer WPL 325996 Contact Us For Availability
12
Left WPL 337216 Contact Us For Availability
12
Right WPL 337218 Contact Us For Availability
12
Retainer-Insulation (Sides) WPL ARI22719A2 Contact Us For Availability
12
Right WPL 315398 Contact Us For Availability
12
Left WPL 315400 Contact Us For Availability
12
Bracket-Control Panel Mounting WPL ARI22716A7 Contact Us For Availability
12
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
13
Insulation WPL 325999 Contact Us For Availability
13
Right WPL 330817 Contact Us For Availability
13
Left WPL 330818 Contact Us For Availability
13
Cap-End WPL ARI22717A3 Contact Us For Availability
13
Screw 6-32x3/16`` WPL 315919 Contact Us For Availability
14
Lining WPL 325946 Contact Us For Availability
14
Spring-Oven Door WPL 322595 Contact Us For Availability
14
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
14
Cover-Upper Wire WPL 333020 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
Right WPL 335599 Contact Us For Availability
15
Left WPL 335600 Contact Us For Availability
15
Hinge-Oven Door WPL ARI22720A4 Contact Us For Availability
15
Rear Wire Shield WPL 333022 Contact Us For Availability
16
Washer-Felt WPL 335945 Contact Us For Availability
16
Spacer-Expansion WPL 330905 Contact Us For Availability
16
Screw WPL 327320 Contact Us For Availability
17
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
17
Knob-Infinite WPL 336379 Contact Us For Availability
17
Bottom-Burner Box WPL 336078 Contact Us For Availability
18
Right WPL 330903 Contact Us For Availability
18
Left WPL 330904 Contact Us For Availability
18
Trim-Side WPL ARI22721A1 Contact Us For Availability
18
Knob-Thermostat WPL 336378 Contact Us For Availability
18
Extension-Burner Box WPL 333610 Contact Us For Availability
19
Element-Bake WPL 330902 Contact Us For Availability
19
Lens-Indicator Light WPL 331705 Contact Us For Availability
19
Shield-Wire WPL 330900 Contact Us For Availability
20
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
20
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
20
Rod-Main Top Support WPL 336079 Contact Us For Availability
21
Trim-Bottom WPL 331515 Contact Us For Availability
21
Panel-Control WPL 336551 Contact Us For Availability
21
Top-Burner Box WPL 333018 Contact Us For Availability
22
Holder-Oven Lamp WPL 330901 Contact Us For Availability
22
Light-Indicator (Surface) WPL 331717 Contact Us For Availability
22
Screw WPL 313190 Contact Us For Availability
23
Bulb-Oven Light WPL 111257 Contact Us For Availability
23
Light-Indicator (Oven) WPL 331716 Contact Us For Availability
23
Hex Nut WPL 97816 Contact Us For Availability
24
Washer WPL 106462 Contact Us For Availability
24
Clock WPL 335616 Contact Us For Availability
24
Junction Block WPL 290105 Contact Us For Availability
25
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
25
Clock Lens WPL 336943 Contact Us For Availability
26
Knob-Clock WPL 334961 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
27
Switch WPL 334649 Contact Us For Availability
28
Clip-Thermostat Bulb WPL 321539 Contact Us For Availability
29
Oven Body WPL 330908 Contact Us For Availability
30
Front Frame WPL 332581 Contact Us For Availability
31
Plate-Thermostat Bulb Cover WPL 237762 Contact Us For Availability
32
Seal-Oven Door WPL 314062 Contact Us For Availability
33
Insulation-Oven Wrap WPL 326040 Contact Us For Availability
34
Rack-Oven (2 Req) WPL 326068 Contact Us For Availability
35
Pan-Broiler WPL 331592 Contact Us For Availability
36
Grid-Broiler Pan WPL 326297 Contact Us For Availability
37
Support-Broil Element WPL 324808 Contact Us For Availability
38
Washer WPL 335178 Contact Us For Availability
39
Element-Broil WPL 319526 Contact Us For Availability
40
Tube-Vent WPL 313200 Contact Us For Availability
× ![]()
